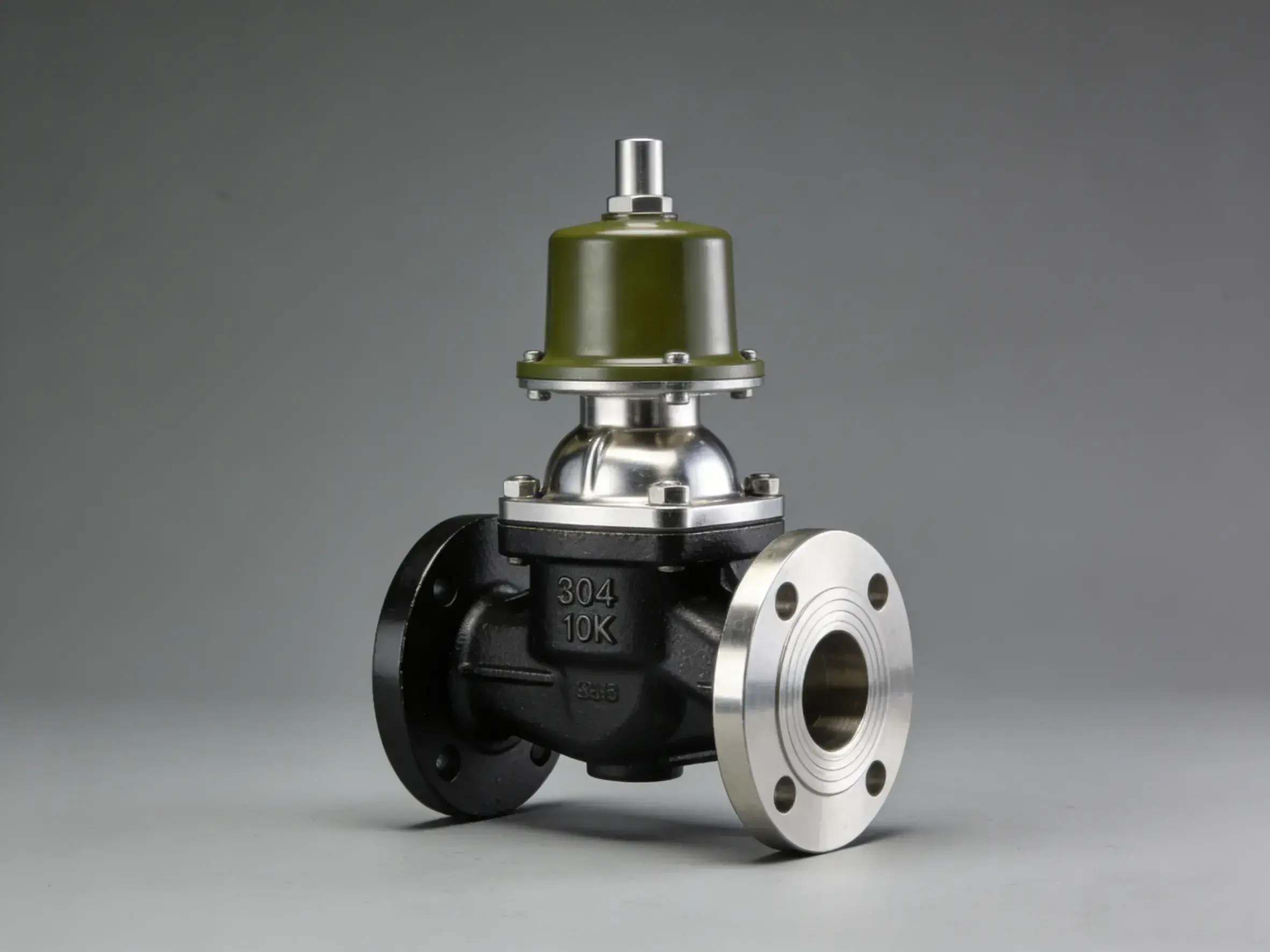

Diaphragm valves operate based on diaphragm control types, which determine how the valve opens and closes. The primary types include:
Actuated diaphragm valves use external forces, such as pneumatic or hydraulic systems, to control diaphragm movement. This design enhances precision and allows for remote operation, making them ideal for automationheavy environments.
Manual diaphragm valves rely on mechanical handles or levers for operation. They are costeffective and suitable for applications where manual control is sufficient, such as lowflow systems.
Selfactuated diaphragm valves utilize fluid pressure to move the diaphragm, eliminating the need for external actuators. This type is perfect for highpressure applications where responsiveness is critical.
Diaphragm valve sizing is a critical process that ensures the valve operates efficiently without excessive pressure drop or flow restriction. Several factors must be considered:
Determining the required flow rate is the first step in diaphragm valve sizing. Higher flow rates necessitate larger valve openings or additional ports to maintain performance.
The valve must withstand the system’s operating pressure. Diaphragm valve sizing involves selecting a model with a pressure rating that exceeds the maximum expected pressure.
The diaphragm material must resist the fluid’s chemical properties. Common materials include TFE, rubber, and polyurethane, each suited for specific applications.
The choice of diaphragm control types influences diaphragm valve sizing decisions. For example, actuated valves may require larger diaphragms to handle higher flows, while manual valves offer flexibility in smaller sizes.
roper diaphragm valve sizing ensures minimal pressure loss, reduced wear, and extended valve life. Incorrect sizing can lead to leaks, reduced efficiency, and frequent maintenance.
