The material of a sight glass significantly impacts its durability, chemical resistance, and suitability for specific environments. Common materials include glass, polycarbonate, and stainless steel. Each offers unique advantages depending on the application.
Glass is the most traditional option, known for its clarity and high temperature resistance. However, it can be brittle and prone to cracking under pressure. For highpurity applications, borosilicate glass is often preferred due to its thermal stability.
olycarbonate is a lightweight alternative that excels in environments with extreme temperatures or chemical exposure. It’s shatterproof, making it ideal for hazardous settings. However, it may yellow over time when exposed to UV light.
Stainless steel is durable and corrosionresistant, making it suitable for aggressive fluids. While it doesn’t offer the same transparency as glass or polycarbonate, it’s a reliable choice for heavyduty industrial use.
ipe sight glass types vary based on design and mounting. The most common include windowstyle, tubestyle, and floatinghead types. Each type serves different purposes and installations.
These are flat, framemounted glasses that provide a direct view into the pipe. They’re easy to install and ideal for applications requiring a broad view of the fluid level.
Tubestyle sight glasses are cylindrical and offer a more focused view. They’re great for tight spaces or when a smaller, precise sight is needed. However, they may require more careful alignment during installation.
Floatinghead designs allow for thermal expansion compensation, making them suitable for hightemperature applications. They’re more complex but provide excellent accuracy in level measurement.
roper sight glass installation options are critical to ensure longevity and performance. Factors like pipe diameter, pressure ratings, and environmental conditions must be considered.

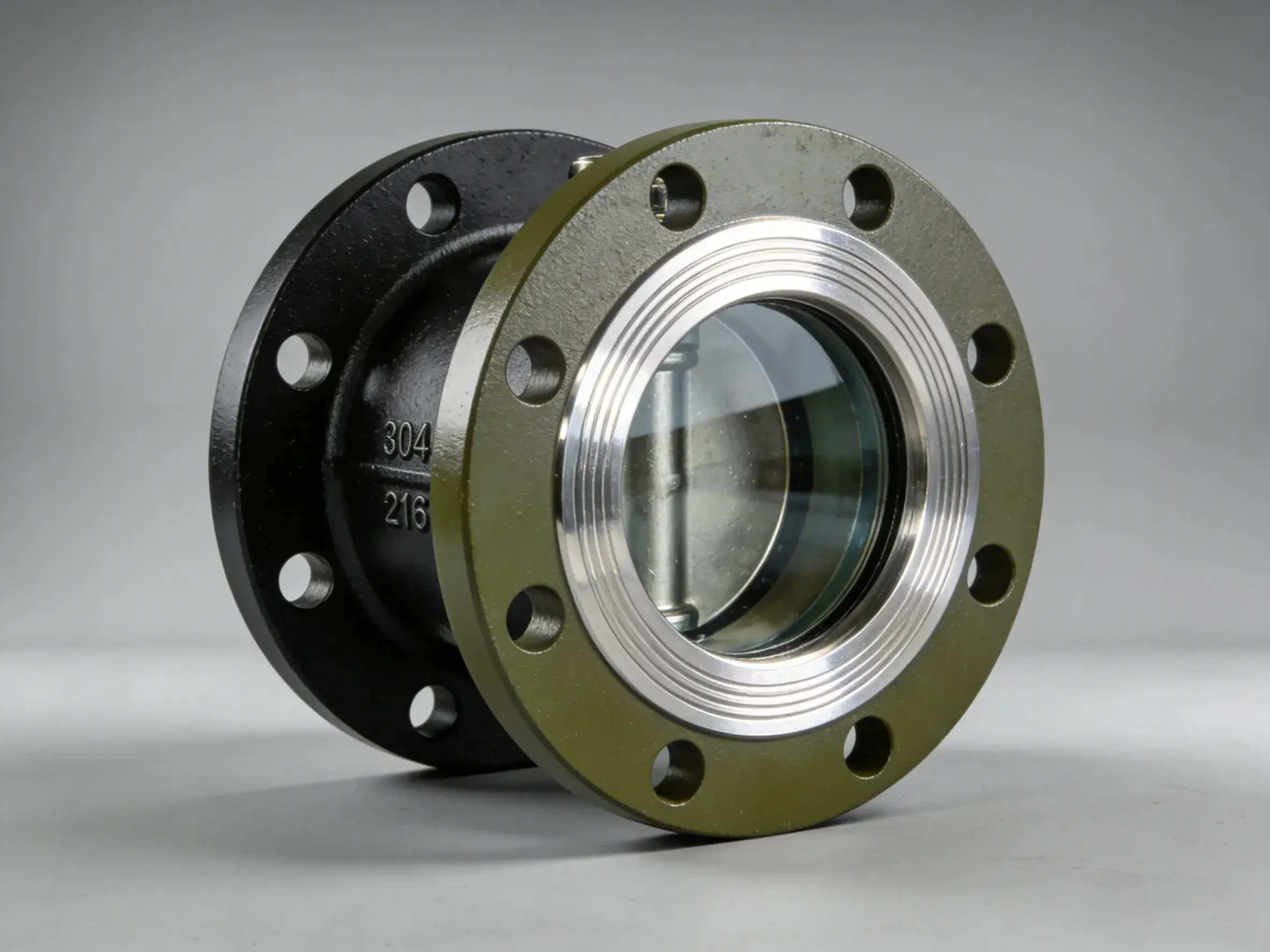

Flanged sight glasses are secured using bolts and nuts, offering a robust connection. They’re ideal for highpressure systems and provide easy access for maintenance.
For permanent installations, welded sight glasses are a great choice. They create a seamless, leakproof connection but require professional welding expertise.
Adhesivemounted sight glasses are a quick solution for lowpressure applications. They’re less durable than flanged or welded options but are useful for temporary or portable setups.
To maximize the lifespan of your sight glass, follow these best practices:
Understanding sight glass materials, pipe sight glass types, and sight glass installation options is essential for selecting the right component for your industrial needs. By considering these factors, you can ensure clear visibility, safety, and efficiency in your operations.
